What Is Engine Order Telegraph?
In a seagoing vessel, navigational officers control the ship’s navigation system from the bridge and engineering officers control the propulsion plant from the engine room.
The bridge is on top of the ship, hence the officer on the bridge does not know about the condition of the propelling engine, and the marine engineer in the engine control room does not know where the ship is heading, as the engine room is situated below the water line of the ship. Hence, a fail-safe communication is required between the navigation and the engineer officer to ensure a safe sailing.

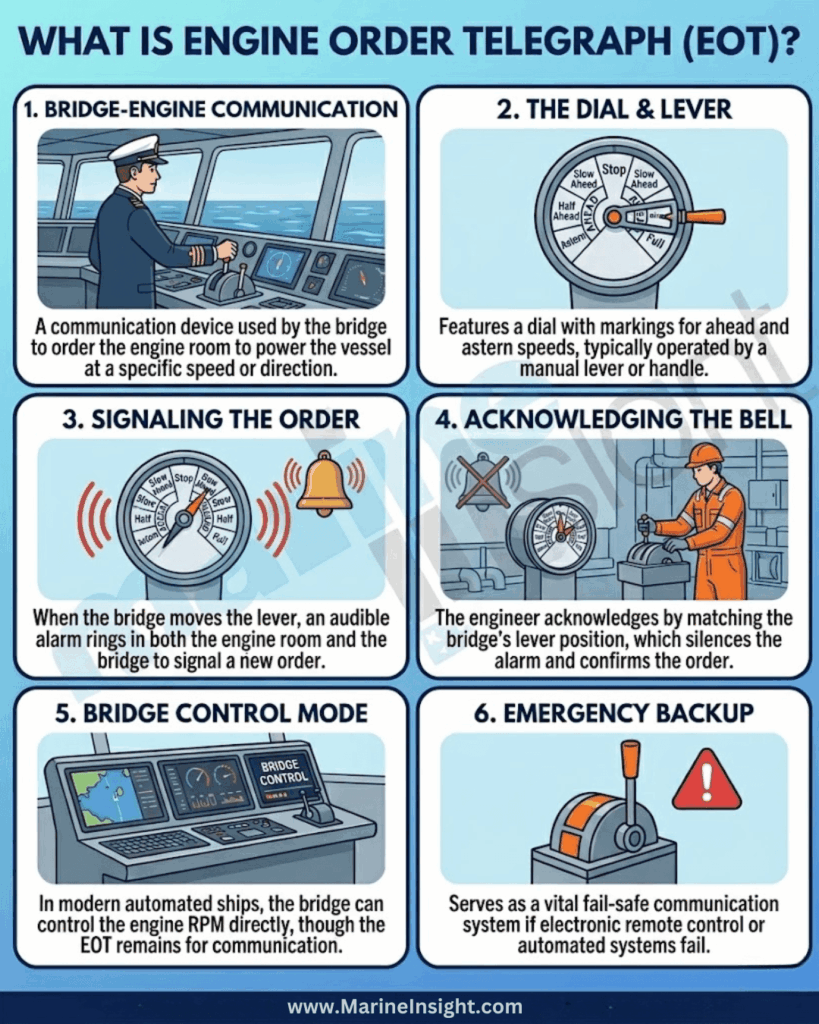

As the word describes, the telegraph on board a ship is used as a communication device to transfer orders of change in speed or direction from the bridge to the engine control room.
The engine order telegraph consists of a lever which can be moved over different speed positions for ahead and astern direction.
Location of Engine Telegraph
The telegraph and its bell, also known as the telegraph bell, are located both in the engine control room (ECR) and on the bridge. A responsible officer from each department handles the telegraph from these locations. One more telegraph is located on the emergency manoeuvring or local manoeuvring station of the main engine. There is a changeover switch located in the ECR for telegraph selection, which can be manually or automatically changed between the local control and engine control room telegraph.
Different Position on Engine Telegraph
Ahead Direction Movements:
- Navigation full
- Full Ahead
- Half Ahead
- Slow Ahead
- Dead Slow Ahead
- Stop
Astern direction movements:
- Dead slow astern
- Slow Astern
- Half Astern
- Full Astern
- Emergency Astern
Engine Telegraph Operation
The initial movement of the telegraph is always from the navigation bridge and is done by moving the lever in the required direction, which rings the telegraph bell of both the locations (Engine room and Bridge).
After hearing the bell, the engineer officer acknowledges the telegraph from the engine room to the same position as that of the bridge, which stops the ringing of the bell. This ensures that the correct movement is acknowledged and the engine speed and direction are controlled accordingly.
In modern ships with automation and controls, the bridge telegraph is directly connected with the engine controls, and it doesn’t require the involvement of engine room personnel. Such a type of telegraph is called a remote-controlled telegraph device. A provision is given to link both telegraphs so that manual operations can be carried out in case automation fails.
You may also like to read-
- Dead Reckoning Navigation Technique at Sea
- 12 Famous Sail Ships
- Duties of The 2nd Engineer In The Merchant Navy
Disclaimer :
The information on this website is for general purposes only. While efforts are made to ensure accuracy, we make no warranties of any kind regarding completeness, reliability, or suitability. Any reliance you place on such information is at your own risk. We are not liable for any loss or damage arising from the use of this website.
eBooks you will like to read
Disclaimer :
The information on this website is for general purposes only. While efforts are made to ensure accuracy, we make no warranties of any kind regarding completeness, reliability, or suitability. Any reliance you place on such information is at your own risk. We are not liable for any loss or damage arising from the use of this website.
Related Articles
Subscribe To Our Daily Newsletter
By subscribing, you agree to our Privacy Policy and may receive occasional deal communications; you can unsubscribe anytime.
what does RFA means while navigating ships from the port ?
RFA- REVOLUTIONS FULL AWAY
Could You explain also Sub Telegraf
What does double ring full ahead means??
@Sunil: Usually it means final full away so that ship engine can settle down as per the bridge speed requirement at open sea.
In some engines, there is a telegraph lever and a fuel lever in ecr. Both other ships have only a telegraph. Why ,What precautions need to be done while telegraph testing with only telegraph lever.
Sir, please define what full away means.
Rgds
@Surapto: Once a vessel has cleared port, dropped the pilot, and is clear of any restricting channels, the captain will ring down to the engine room, Full Away., THIS IS THE SPECIFIC TIME AND POSITION FROM WHICH ALL THE ENSUING PASSAGE DATA AND AVERAGES (AV SPEED, AVERAGE CONSUMPTION ETC ETC), WILL BE NOTED, UNTIL ARRIVAL AT THE PORT OF DESTINATION, WHEN THE CAPTAIN ORDERS e.o.p. (End of passage)
We tried to use local side manuevering. The problem is whenever the bridge gives command we cannot acknowledge it, the bell keeps on sounding. But the local side manuevering is operating well. Any thoughts?
Visited a 1944 Victory ship yesterday. Engine telegraph has two levers that are moved in unison, but the vessel is only single screw. Why two levers? No one could tell me.
Tahoe Dave: There are two levers as there are two dial indicators, one on each side, so the telegraph may be operated from either side, depending on the situation and location of personnel on the bridge and or engine room.
